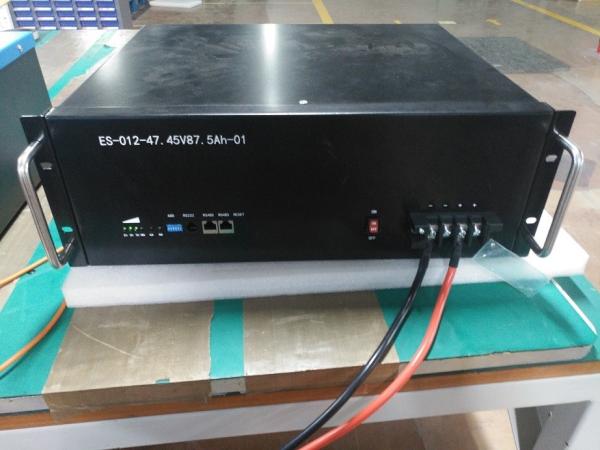

47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life

Soundon New Energy Technology Co,.Ltd.

47.45V87.5Ah High Energy Density Home Storage Battery With 5-10 years Warranty And Longer Cycle life

  • 1
  • 2

Brand Name : Soundon

Model Number : ES-12-47.45V87.5Ah-01

Certification : CE,UN38.3,ROHS,MSDS,UL

Place of Origin : China

MOQ : 50

Price : Negotiable

Supply Ability : 300 units / week

Delivery Time : sample for a week ,mass production around

Packaging Details : carton box pacage

Nomial Voltage : 47.5V

Capacity : 87.5Ah

Rapid Charge current : 20A

Maximum charge &discharge current : 50A

Standard discharge current : 30A

Cycle life : 3000 cycles

Contact Now

47.45V87.5Ah Lifepo4Home Storage Battery With 5-10 years Warranty And High Energy Density

Specification :

Battery Module :

Battery cell MODE SEPNi8688190P
Battery cell capacity Ah 17.5Ah
Configuration 5P1S
Dimension mm
(H*W*T)
232.5*97*45.3
Module Rated Capacity Ah/Wh 87.5AH
Module Rated Voltage V 3.65
Module Weight Kg 1.61
Module Weight Wh/Kg 198

Battery Pack Parameters

Configuration 5Parallel 13series
Capacity Rated Capacity: 87.5Ah Standard Discharge Current:
0.5C

Discharge Cut off Voltage:36V

Voltage

Average Voltage:87.5Ah

Standard Discharge Current:
0.5C

Discharge Cut off Voltage:36V


Working voltage
36~54.6V DC

Charge Condition
standar charge current :10A
Rapid Charge current:20A
Maximum Charge Current: 50A
Discharge Condition standar discharge current :30A
Maximum disCharge Current: 50A
Indepedance
150mΩ
working Temperature

Charge :(040) ℃

discharge:(-1060)℃


(≤80% humidity)

Cycle life 3000 cycles (0.5C 80%DOD)
Storage Temperature

1 month:-1045

3month:-1025

Relative humidity≤90%

Soundon New Energy NMC Pouch Battery Cell List

Model SEPNi8688190P-17.5Ah SEPNi11217127P-32Ah SEPNi11100302P-50Ah
Rated Capacity(Ah) 17.5 32 50
Typical capacity(Ah) 17.9 32.96 51
Rated Voltage(V) 3.65 3.65 3.7
Internal Resistance(mΩ) ≤3.5 ≤2.0 ≤1.5
Thickness MAX(mm) 8.7 11.5 11.8
Width MAX(mm) 92 217 101
High MAX(mm 195 127 303
Power(Wh) 63.875 116.8 185
Energy Density(Wh/Kg) 220 217 260
Energy Density(Wh/L) 409 368 528
High Temp performance ((55℃) ≥100% ≥100% ≥100%
Low Temp Performance(-20℃) ≥75% ≥75% ≥75%
Cycle 1C/1C≥2500 1C/1C≥2500 80%SOH≥1500cls
Cell Weight 293±10g 545±15g

735±20

Battery Cell Advantage:

1 .Battery cell are pass the UL ,UN38.3,BIS ,ARAI ,MSDS internatioal Certificate .

2.Battery Cell are got the Sea and Air transport indentification and classification Report

3.Good low temperature : 220wh/kg battery cell system discharge capacity / energy can reach 69.5% / 62.7% under -20℃

260wh/kg battery cell system discharge capacity / energy can reach 73.2% / 67.8% under -20℃

4.Long cycle life :260wh/kg battery cell system cycle life is 2000 cycles (25 degree at 1C)
